Home Products Linear Heat Detection System
What is a linear hea
What is a linear hea
COD available
Fire Alarm & Detection System

Linear Heat Detection System

Share with
Share this on :

Description

Product details

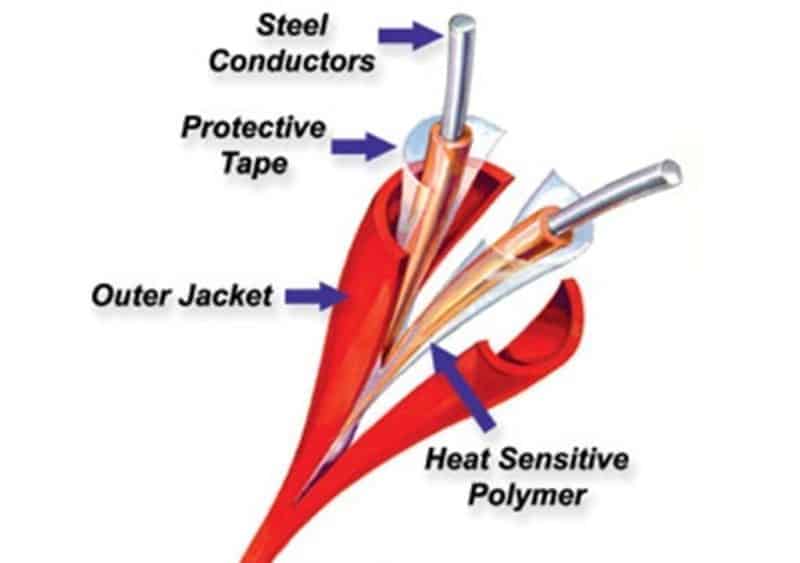

What is a linear heat detection system? Linear Heat Detection (LHD) is a continuous heat detector designed to detect heat along the length of a sensor cable. This sensor cable is made up of two conductors, both insulated by heat sensitive polymers. The heat sensitive polymer is protected by an outer jacket. Beneath this jacket and heat sensitive polymer coating is a pair of steel conductors. When the ambient temperature meets or exceeds the detector’s fixed temperature, the polymer melts. As it melts, the steel conductors make contact and initiate an electrical short that then sends a signal to the fire alarm panel of an alarm condition. Once a signal has been sent, the panel will then release the fire suppression agent or set of the fire alarm system. For example, if the LHD is connected to a fire alarm that initiates the fire sprinkler system upon alarm, when the heat from fire melts the wire, the system is alerted, and the fire sprinkler valves open to allow water to flow in. LHD work with most any type of fire alarm system (wet, dry, etc.). Benefits of liner heat detection  There are many benefits to LHD. One of which is a continuous source of heat detection up to 10,000 feet. LHD cables are also very durable and long-lasting. Conversely, spot heat detectors do not offer the continuous field of detection of LHD cables, they don’t hold up very well, and can be easily damaged. Fike, one of the many manufacturers of linear heat detectors, notes many benefits of LHD. Some of these benefits pertaining to their detector called Protectowire include: Fewer false alarms and false suppressant discharge with Confirmed Temperature Intiation (CTI). Detection device works with fire alarm system interface and modules that identify source and temperature of hazard Easy installation and maintenance Provides hazard coverage at every point on the cable for maximum protection Available in a variety of lengths, cable coatings and alarm temperatures for maximum flexibility Wide zone area, up to 10,000 feet of continuous detection

Keywords

Other Offerings

Related Offerings

Fire hydrant installation consists of a system of pipe work connected directly to the water supply main to provide water to every hydrant outlet and is intended to provide water for the firemen to fight a fire. The water is discharged into the fire engine form which it is then pumped and sprayed over fire. A fire hydrant system is a crucial part of fire protection in buildings and communities. It consists of underground pipes connected to a pressurized water source, typically a municipal water supply. Fire hydrants, which are above-ground outlets connected to the system, are strategically placed to provide firefighters with quick access to water in case of a fire emergency. The system allows firefighters to connect their hoses to the hydrants to access the water supply, which helps extinguish fires more effectively. A fire hydrant system is a crucial component of fire protection in buildings and neighborhoods. Here are some of its benefits and uses: Fire Suppression: The primary purpose of a fire hydrant system is to provide a ready and reliable source of water for firefighting in case of a fire emergency. Firefighters can quickly connect hoses to hydrants to access water and extinguish fires. Water Supply: Hydrant systems are connected to the municipal water supply, ensuring a continuous and high-pressure water source for firefighting purposes. This is especially important in areas where fire trucks may not be able to access or where water pressure may be low. Accessibility: Hydrants are strategically placed in various locations, making them easily accessible for firefighters. They are often located along streets, in parking lots, and near buildings to ensure quick access during emergencies. Reliability: Fire hydrants are designed to be durable and reliable, providing a constant water supply even in adverse conditions. Regular maintenance ensures their functionality when needed. Safety: Having a well-maintained fire hydrant system enhances overall fire safety in buildings and communities. It provides a crucial tool for firefighters to contain and extinguish fires, reducing the risk of property damage and injuries. Regulatory Compliance: Many building codes and regulations require the installation of fire hydrant systems in certain types of buildings to ensure compliance with fire safety standards. Overall, fire hydrant systems play a vital role in fire protection and are essential for ensuring the safety of buildings and communities.
View Details
Fire Hydrant System
A fire sprinkler system is an active fire protection method, consisting of a water supply system providing adequate pressure and flowrate to a water distribution piping system, to which fire sprinklers are connected. Although initially used only in factories and large commercial buildings, systems for homes and small buildings are now available at a cost-effective price. A fire sprinkler system is a type of automatic extinguishing system (AES) that prevents fire growth and spread by releasing water through a series of sprinkler heads connected to a distribution piping system. Water is released through the sprinkler heads once the surrounding air reaches 165 degrees Fahrenheit What are the 4 types of fire sprinkler systems? Wet pipe, dry pipe, pre-action, and deluge are four types of fire sprinkler systems. Each of these systems helps prevent flames from spreading and reduces fire damage. The main difference between these types of fire sprinkler systems is their applications and how they activate. A fire sprinkler system is a network of pipes filled with water or other fire retardant material, usually installed in buildings to extinguish or control fires. When a fire is detected, the system releases water or other agents through sprinkler heads, which are activated by heat, effectively controlling or extinguishing the fire. They are a critical component of fire safety in many buildings. Fire sprinkler systems provide several benefits, including: Fire Protection: Sprinklers can quickly respond to a fire, suppressing it or even extinguishing it before firefighters arrive, reducing property damage and potential injuries or fatalities. Property Protection: They help protect buildings, equipment, and inventory from fire damage, minimizing business interruption and loss. Life Safety: Sprinklers can save lives by controlling the spread of fire, reducing smoke and heat, and providing a safer escape route for building occupants. Lower Insurance Costs: Many insurance companies offer discounts for buildings equipped with sprinkler systems due to their effectiveness in reducing fire damage. Environmental Impact: Sprinklers can help contain fires, reducing the amount of water needed to extinguish them compared to firefighting efforts without sprinklers. Code Compliance: Many building codes and regulations require the installation of fire sprinkler systems in certain types of buildings to ensure safety standards are met. Overall, fire sprinkler systems are a crucial component of fire safety, providing early detection and suppression of fires, which can significantly reduce the potential damage and save lives.
View Details
Fire Sprinkler System
What is an addressable fire alarm system? An addressable fire alarm is a commercial fire alarm system that uses sophisticated technology to detect and pinpoint a fire's exact location. Every device in an addressable system is connected and communicates continuously with each other and a central monitoring station. An addressable fire alarm system is a type of fire alarm system that can pinpoint the exact location of a triggered detector or call point. Unlike conventional systems, where detectors are grouped into zones, in an addressable system, each detector or device has a unique address. This allows the control panel to identify the specific device that has been activated, providing more detailed information to building occupants and firefighters responding to the alarm. Addressable systems are often used in larger or more complex buildings where pinpointing the location of a fire quickly is critical for safety. What is the difference between an addressable and conventional fire alarm system? In other words, with addressable systems there is one wire that connects all devices to the fire alarm control panel whereas with conventional systems there is a different wire for each device and each wire connects to the fire alarm control panel.
View Details
Addressable Fire Alarm System
